Showing all 15 results

•

  DMCU800 – Programmable Controller

  DMCU800 – Programmable Controller

  The DMCU800 controller accepts a range of inputs including 4-20mA and thermocouples. Values are displayed on its clear LED screen. It is fully configurable via the push button controls. Outputs are 4-20mA and 5 relays for control or alarms. A programmable look up table means it can be used on non-linear shaped tanks to give volumetric measurements. The controller is available in both panel mount and IP65 wall mount versions with options for 24Vdc or 110/220Vac supplies. Typical applications are for use with the Delta Mobrey series of 9700 pressure transmitters or the DMSP422 level transmitters.



  Categories: Controller, Level, Product class
  4-20mA Input Controller
•

  Level Gauges

  Level Gauges

  These level gauges provide high reliability for use in steam and process applications, specifically saturated steam, hot water and aggressive fluids.

  These are available in either Glass Tube, Reflex or Transparent Types and have been used in industrial boilers and chemical aggressive media.

  Made from borosilicate glass with spare shut off valves available.

  Categories: Gauges, Level, Measurement
  Glass Tube, Reflex & Transparent Types
•

  D45 SMART Level Transmitter – D Series

  D45 SMART Level Transmitter – D Series

  The D45 Smart Level Transmitter is a probe most suited for measuring the level in pressurised tanks.  It is compact yet robust, and is categorised as flameproof and intrinsically safe all with high accuracy. Equipped with a fully welded sensor which guarantees tightness for oil systems, even over long term use.

  This probe can be used with a wide range of connections, making it versatile, and is easily configurable with the D-Software.

  This digital product is part of a family of SMART transmitters, but this one is most beneficial where there is no external access to a tank.

  Key Features

  • ATEX – Flameproof and Intrinsically Safe IECEx – Flameproof and Intrinsically Safe

  • High accuracy ±0.16% • Fully HART ® compatible

  • 4-20mA analogue with digital communications

  • Fully welded sensor guarantees tightness of oil systems for long term usage

  • Programmable range, zero shift, characteristic and damping ratio with local panel keys

  Categories: Approvals, ATEX Ex d, ATEX Ex ia, D-Series, IECEx Ex d, IECEx Ex ia, Level, Measurement, Product class, Series, SIL 2, Transmitters
  For pressurised tanks with no outside access
•

  DMSP900SH Level, Contents and Flow Transmitters

  DMSP900SH Level, Contents and Flow Transmitters

  Introducing Delta Mobrey’s new range of Ultrasonic Level Products

  Delta Mobrey level transmitters provide simple installation and non-contact measurement of liquid level, tank contents, or open channel flow.  The transmitters offer IP68 protection and are ideal for enclosed wet wells and sumps.  All models have HART comms for communication with a HART master device such as Delta Mobrey’s DMCU900 controller.  Installation accessories are also available.

  View our webinar featuring the DMSP900SH.

  Categories: Flow, Flow, Level, Mobrey, Product class, Transmitters
  Hart Transmitters Ultrasonic Transmitters
•

  DMSP422, DMSP400 and DMSP500 – Ultrasonic Transmitters

  DMSP422, DMSP400 and DMSP500 – Ultrasonic Transmitters

  Delta Mobrey’s Ultrasonic Level Transmitters are your cost-effective solution for reliable level measurement instrumentation. The DMSP Series can be used for virtually all level measurements, and are ideal for mounting over liquid surfaces in tanks or open channel flow. Model options offer HART communication, relay outputs and hazardous area certification. All models have LCD display and push button configuration.



  View our webinar featuring the DMSP.



  Key Features


  • Non-contact, continuous measurement of Level, Contents or Open Channel Flow
  • Local LCD display and push button menu for parameter display, configuration and diagnostics
  • Two wire loop powered 4-20mA with HART® output
  • Integral relay output option
  • Speed of sound temperature compensation
  • Configure to ignore disturbing object false echo
  • IP67/68 construction
  • Plastic or painted aluminium enclosure

  Categories: Level, Mobrey, Product class, Transmitters
  Display for chemical and water treatment
•

  DMCU900 Control Unit – Ultrasonic

  DMCU900 Control Unit – Ultrasonic

  The DMCU900 Series Universal Controller provides an interface between Delta Mobrey Ultrasonic Transmitters and operators or control systems.

  All models have a large LCD display with push button menu driven programming. Options are available for data logging, with download facility. The DMCU900 provides an intrinsically safe power supply for I.S. transmitters.  The wall mount model has a protective hinged lid with clear visibility of the display.

  The DMCU900 series provides full functionality for configuration and diagnostics of any Delta Mobrey HART ultrasonic transmitter.

  This product, when used in conjunction with Detla Mobrey Ultrasonic level transmitters, can be used to display the level or volume of linear or non-linear tanks, measure open flow for many weirs and flume designs as well as giving high or low alarms for storage tanks.

  Key Features

  • Controller for use with DMSP400, DMSP500 and DMSP900 series level transmitters via HART comms
  • Display measured values, control pumps, actuators and alarms
  • Configure Delta Mobrey HART transmitters, access diagnostics
  • Single or dual transmitter inputs
  • 4-20mA and up to five relay outputs
  • Data logging option with SD card slot and RS485 comms
  • DC or AC power supply
  • Galvanically isolated supply to power Intrinsically Safe transmitters

  Categories: Controller, Level, Mobrey, Product class
  Universal HART Input Control Unit
•

  MLT100 SMART HART Displacer Level Transmitter

  MLT100 SMART HART Displacer Level Transmitter

  The Delta Mobrey MLT100 Level Transmitter is one of the most advanced displacer based devices on the market, coupling the time proven buoyancy principle with sophisticated electronics in an instrument of high reliability and stability.

  Special care has been taken in design to ensure a small mounting envelope is maintained, resulting in reduced weight and associated savings in mounting.

  Available Worldwide excluding Europe.



  Categories: ATEX Ex d, Level, Mobrey, Transmitters
  LVDT technology, direct or chamber mounted
•

  Boiler Water Level Controls

  Boiler Water Level Controls

  This family of Boiler Water Level Controls are designed to regulate the flow of feed water into the boiler in proportion to the steam demand by using the change in boiler level as a load indicator. They consist of the following elements:

  Modulating Controller:

  The Delta Mobrey Modulating Controller is a single element electro-hydraulic control with an electronic feedback, used for controlling the flow of feed water into the boiler. Designed to be used alongside the Delta Mobrey
  Vertical Air Break Controls (VABC).

  Sequencing blowdown valves:

  The Delta Mobrey sequencing valve is designed to function as a combined water isolating valve and a sequencing blowdown valve to provide positive purging of the water connection, float chamber and steam connection of a boiler control. The operation of the valve helps to ensure the water port does not become blocked by sediment, mud or debris. It also provides a positive test of the boiler water level control, ensuring that any associated equipment, such as the feedwater pump or valve, and any alarms, cutouts or lockouts operate as expected.

  Vertical Air Break Controls

  The Delta Mobrey Vertical Air Break Controls (VABC) are a comprehensive range of magnetically operated water level controls for steam boilers. They are designed to meet all requirements for automatic on/off control of boiler feed pump, burner cut out, high and/or low level alarm or any combination of these. Models available with Industrial (NEMA4) or Marine Heads. TÜV approved models are available in chambers and for direct mounting. The Delta Mobrey VABC is a gland-less construction. A primary permanent magnet is attached to the float rod and slides vertically inside a non-magnetic stainless steel centre tube. Movements of the float are transmitted to a secondary magnet in each switch unit.

  Categories: Boiler Water Level Controls, Level, Mobrey, Steam & Water
  All mechanical boiler controls and valves
•

  Horizontal Magnetic Float Switches

  Horizontal Magnetic Float Switches

  You need to trust that your level switches won’t let you down. Mobrey float level switches are rugged, robust, and trusted globally for their long-term reliability in the harshest of environments and the most hazardous areas. Ideal for industrial applications such as pump control and high or low alarm duty on tanks and pressure vessels.

  Categories: Level, Mobrey, Product class, Switches
  Level Switches - Product Number SO1DB and S36
•

  Vibrating Rod Level Switch for Solids – VLS Switch

  Vibrating Rod Level Switch for Solids – VLS Switch

  The Vibrating Rod Level Switch (VLS) is the perfect solution for single point level switching in free flowing solids.  For tanks, silos or hopper bins, and for a wide density range of solids from fine powders, grains to agregates. A single rod design provides the solution to tuning forks which may become blocked or bridged.

  The vibrating rod is energized and kept in resonance by an electronic circuit. When covered by material, the damping of the vibration is detected by the electronics which switch the output relay after a configurable time delay. The vibrating rod level switch is the perfect solution for single point level switching in free flowing solids across a wide density range, from fine powders to grains. A single rod design provides the solution to tuning forks which may become blocked or bridged.

  Key Features

  • Adjustable sensitivity
  • 1 ½” BSP or NPT threaded connection
  • Side or top mounting
  • Extension lengths to 20m
  • Robust aluminium housing
  • IP67 ingress protection
  • AC or DC supply voltages
  • Dust explosion protection
  • High temperature option

  Categories: Level, Mobrey, Product class, Switches
  Stainless steel sensor, ATEX approved
•

  Rotating Paddle Level Switch – PLS Series

  Rotating Paddle Level Switch – PLS Series

  The paddle switch may be used as either a high or low level limit switch. It is easily mounted from above, or through a vessel wall.  A small electric motor drives a paddle which rotates freely in the absence of material. When the paddle is impeded by the presence of material, a microswitch actuates an alarm signal. As soon as the paddle is completely stopped from rotating, power to the motor is cut, thereby extending motor life. After the material level falls, the motor is returned to its normal position and the paddle begins to rotate again.

  Failsafe models use a microcontroller for self-validating diagnostics and monitor both motor and shaft rotation to detect and indicate a fault condition on the fault relay.

  The PLS Series of switches can be used with granular, pelletized, and powdered dry products. They may be used in high level applications with materials over 160 kg/m3 and low or intermediate applications with materials over 80 kg/m3.



  Key Features

  • Failsafe option
  • High temperature option
  • 1½” BSP or 1¼” NPT threaded connection
  • Side or top mounting
  • Shaft or cable extensions
  • Robust aluminium housing
  • IP66 ingress protection
  • AC or DC supply voltages
  • Dust explosion protection



  Categories: Level, Mobrey, Product class, Switches
  Full option of available paddles, ATEX approved
•

  Ultrasonic Level Switch – 003 Series

  Ultrasonic Level Switch – 003 Series

  The 003 sensor is a highly reliable level switch with no moving parts. It comprises of a one piece moulded body with an integral PCB, the 003 Level Switch is factory sealed and supplied with a flying lead for customer connection.

  The sensor is designed for high or low level alarm duties to give a voltage free contact or solid state transistor output for alarm signalling or as part of a pump control system.

  Key Features
  • Relay or solid-state output
  • Corrosion resistant PPS construction
  • 1-in. or ¾-in. threaded mounting
  • Small in-tank dimensions
  • 24 Vac or dc powered
  • Lightweight
  • No moving parts

  Categories: Level, Mobrey, Product class, Switches
  Low cost, universal installation, plastic body
•

  Vertical Magnetic Float & Displacer Switches

  Vertical Magnetic Float & Displacer Switches

  For extreme conditions, this vertically mounted hermetically sealed switch provides dependable control.  Specifically designed to handle corrosive atmospheres and low temperatures, the magnet switch mechanism provides a positive snap shut action.  With less moving parts there is less maintenance and greater reliability.  This product is ATEX accredited.

  Key Features

  • No springs in switch mechanism – positive snap action switching
  • Vibration resistant – eliminates spurious trips
  • Multiple switch point options – cost effective control
  • Genuine hermetically-sealed switch option – totally safe and secure
  • Extensive range of chambers – suitable for most applications
  • Relevant chambers are supplied CE marked and fully compliant with the Pressure Equipment Directive (97/23/EC)
  • Designed to ASME B31.3
  • Weld procedures approved to EN ISO 15614-1 and ASME IX
  • SIL Certified



  Categories: Level, Mobrey, Product class, Switches
  Mounted vertically, hermetically sealed
•

  Analogue Submersible Level Transmitters – 9700 Series

  Analogue Submersible Level Transmitters – 9700 Series

  The Delta Mobrey 9700 Series range of tank mounted transmitters provide you with precise and reliable level measurement solutions when in-tank foaming, vapor layers, and temperature gradients prevent use of other instrumentation. These transmitters are designed to perform in the extreme conditions of industrial applications. Available in submersible and externally mounted (floodable) versions, each transmitter gives you high performance and good long term stability, and is virtually maintenance free.

  Key Features

  • Factory sealed and tested for submersed duty
  • 4–20 mA output signal proportional to level
  • Flush mounted ceramic sensor
  • Good long term stability
  • Ideal for industrial or marine applications
  • Wide range of mounting options
  • Low cost installation
  • Readouts for control room or plant mounting



  Categories: Level, Mobrey, Product class, Transmitters
  Marine Certified, various installation options, CSA
•

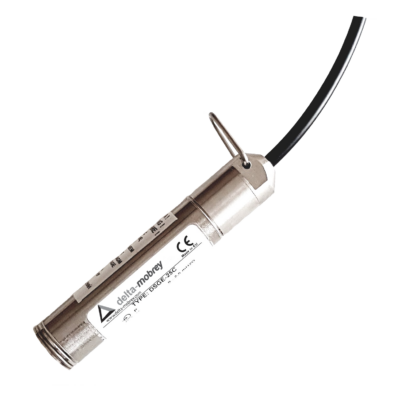

  Analogue Level Probes – DSGE Series

  Analogue Level Probes – DSGE Series

  The DSGE-25/16 Hydrostatic Level Probes are designed to measure liquid levels in tanks, deep wells or narrow piezometers. The probe measures liquid levels, based on a simple relationship between the height of the liquid column and the resulting hydrostatic pressure. The pressure measurement is carried out on the level of the separating diaphragm of the immersed probe and is related to atmospheric pressure through a capillary in the cable.

  When lowered to the reference level, the probe may either hang freely on the cable or lie on the bottom of the tank. The cable with the capillary can be extended using a standard signal cable. For the cable connection a special DSG cable hanger is recommended.

  Key Features

  • 4–20 mA output signal proportional to level
  • Flush mounted ceramic sensor
  • Good long term stability
  • Ideal for industrial or marine applications
  • Wide range of mounting options
  • Low cost installation
  • Readouts for control room or plant mounting

  Categories: Approvals, D-Series, Level, Measurement, Product class, Series, Transmitters
  Transmitter suitable for clean water, seawater, sludge
