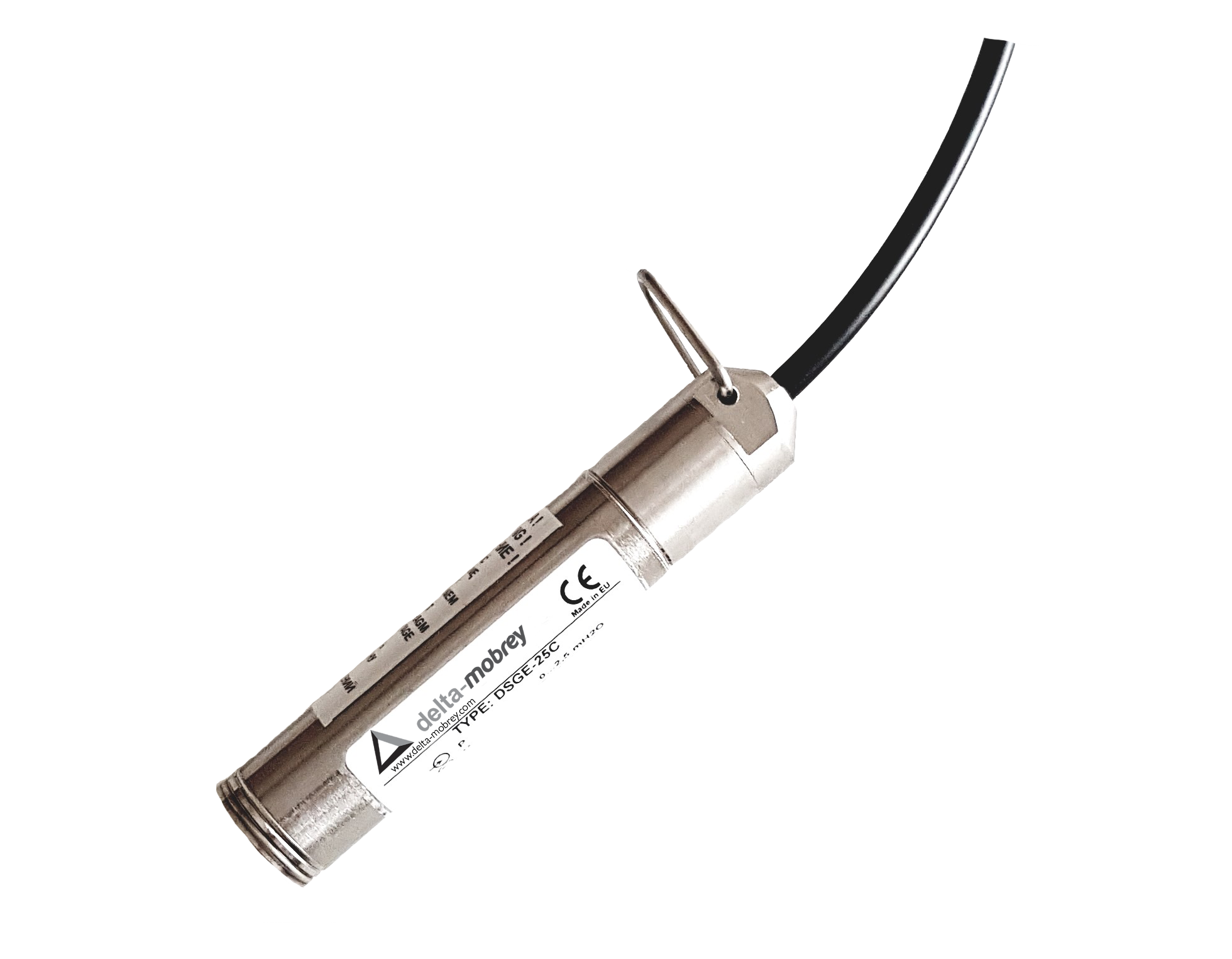

The DSGE-25/16 Hydrostatic Level Probes are designed to measure liquid levels in tanks, deep wells or narrow piezometers. The probe measures liquid levels, based on a simple relationship between the height of the liquid column and the resulting hydrostatic pressure. The pressure measurement is carried out on the level of the separating diaphragm of the immersed probe and is related to atmospheric pressure through a capillary in the cable.
When lowered to the reference level, the probe may either hang freely on the cable or lie on the bottom of the tank. The cable with the capillary can be extended using a standard signal cable. For the cable connection a special DSG cable hanger is recommended.
Key Features
Compact pressure transmitter, with a robust construction, making it an essential for any corrosive environments, or applications where chemicals may damage process instrumentation equipment. This product also comes with a gold plated diaphragm, making it essential when working with Hydrogen. The gold diaphragm will protect against hydrogen permeation, which protects the accuracy and integrity of the product in such conditions. The model D23 Pressure Transmitter is suitable for measuring pressures from -1 to 1000bar with maximum working pressures up to 1200bar.
Key Features
The D-Series pressure transmitters offer customers reliable and accurate solutions to their individual process requirements. This product has a wide range of process connections and is easily configurable via the D-Soft software. The D-Series can be used for a variety of applications when pressure, differential pressure, temperature, level or flow measurements are needed. The D21 Pressure Transmitter is suitable for measuring pressures from -1 to 1000bar with maximum working pressures up to 1200bar, it is intrinsically safe and flameproof, ATEX and IECEx, giving users confidence in aggressive environments
