Delta Mobrey | Transmitters | Digital & Analogue Transmitters https://www.delta-mobrey.com/product-category/product-class/transmitters/ Your trusted partner in process instrumentation Mon, 18 May 2026 06:51:59 +0000 en-GB hourly 1 https://www.delta-mobrey.com/wp-content/uploads/2023/08/Delta-Mobrey-icon-transparent-favicon-large-1-100x100.png Delta Mobrey | Transmitters | Digital & Analogue Transmitters https://www.delta-mobrey.com/product-category/product-class/transmitters/ 32 32 D32 Analogue Differential Pressure Transmitter – D Series https://www.delta-mobrey.com/products/series/d-series/d32-analogue-differential-pressure-transmitter-d-series-copy/ https://www.delta-mobrey.com/products/series/d-series/d32-analogue-differential-pressure-transmitter-d-series-copy/#respond Thu, 05 Dec 2024 16:50:00 +0000 https://www.delta-mobrey.com/?post_type=product&p=23664 The D32 Differential Pressure Transmitters is a cost effective solution for the measurement of differential pressure of gases, vapours and liquids. The active sensing element is a piezoresistive silicon sensor separated from the medium by a diaphragm and by a specially selected type of manometric liquid.

The process connection to mount directly on to a 3 or 5 valve manifold, and also available is several type of chemical seals to measure any type of process fluid and condition.

Key Features

  • Accuracy ±0.25%
  • 4-20mA output signal
  • Static pressure limit up to 420 bar
  • Gold plated diaphragm option, suitable for hydrogen based applications
  • Hastelloy C276 wetted parts option
  • Intrinsic safety certificate (ATEX, IECEx)

The post D32 Analogue Differential Pressure Transmitter – D Series appeared first on Delta Mobrey.

]]>

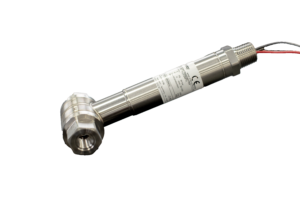

D32 Analogue Differential Pressure Transmitter – D Series

The D32 Differential Pressure Transmitters is a cost effective solution for the measurement of differential pressure of gases, vapours and liquids.

The active sensing element is a piezoresistive silicon sensor separated from the medium by a diaphragm and by a specially selected type of manometric liquid.

The process connection to mount directly on to a 3 or 5 valve manifold, and also available is several type of chemical seals to measure any type of process fluid and condition.

The post D32 Analogue Differential Pressure Transmitter – D Series appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/series/d-series/d32-analogue-differential-pressure-transmitter-d-series-copy/feed/ 0 DMCU800 – Programmable Controller https://www.delta-mobrey.com/products/measurement/level/dmcu800-programmable-controller/ https://www.delta-mobrey.com/products/measurement/level/dmcu800-programmable-controller/#respond Thu, 21 Jul 2022 08:17:21 +0000 https://www.delta-mobrey.com/?post_type=product&p=14369 The DMCU800 controller accepts a range of inputs including 4-20mA and thermocouples. Values are displayed on its clear LED screen. It is fully configurable via the push button controls. Outputs are 4-20mA and 5 relays for control or alarms. A programmable look up table means it can be used on non-linear shaped tanks to give volumetric measurements. The controller is available in both panel mount and IP65 wall mount versions with options for 24Vdc or 110/220Vac supplies. Typical applications are for use with the Delta Mobrey series of 9700 pressure transmitters or the DMSP422 level transmitters.



The post DMCU800 – Programmable Controller appeared first on Delta Mobrey.

]]> The post DMCU800 – Programmable Controller appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/measurement/level/dmcu800-programmable-controller/feed/ 0 D45 SMART Level Transmitter – D Series https://www.delta-mobrey.com/products/series/d-series/d45-smart-level-probe/ https://www.delta-mobrey.com/products/series/d-series/d45-smart-level-probe/#respond Wed, 21 Jul 2021 10:36:31 +0000 https://www.delta-mobrey.com/?post_type=product&p=9167 The D45 Smart Level Transmitter is a probe most suited for measuring the level in pressurised tanks.  It is compact yet robust, and is categorised as flameproof and intrinsically safe all with high accuracy. Equipped with a fully welded sensor which guarantees tightness for oil systems, even over long term use.

This probe can be used with a wide range of connections, making it versatile, and is easily configurable with the D-Software.

This digital product is part of a family of SMART transmitters, but this one is most beneficial where there is no external access to a tank.

Key Features

• ATEX - Flameproof and Intrinsically Safe IECEx - Flameproof and Intrinsically Safe

• High accuracy ±0.16% • Fully HART ® compatible

• 4-20mA analogue with digital communications

• Fully welded sensor guarantees tightness of oil systems for long term usage

• Programmable range, zero shift, characteristic and damping ratio with local panel keys

The post D45 SMART Level Transmitter – D Series appeared first on Delta Mobrey.

]]>







The post D45 SMART Level Transmitter – D Series appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/series/d-series/d45-smart-level-probe/feed/ 0 DMSP900SH Level and Flow Transmitters https://www.delta-mobrey.com/products/measurement/flow/manifolds/dmsp900sh-level-and-flow-transmitters-flow-transmitters/ https://www.delta-mobrey.com/products/measurement/flow/manifolds/dmsp900sh-level-and-flow-transmitters-flow-transmitters/#respond Fri, 28 Aug 2020 12:13:32 +0000 https://www.delta-mobrey.com/?post_type=product&p=4368 Introducing Delta Mobrey's new range of Ultrasonic Level Products

Delta Mobrey level transmitters provide simple installation and non-contact measurement of liquid level, tank contents, or open channel flow.  The transmitters offer IP68 protection and are ideal for enclosed wet wells and sumps.  All models have HART comms for communication with a HART master device such as Delta Mobrey’s DMCU900 controller.  Installation accessories are also available.



View our webinar featuring the DMSP900SH.



The post DMSP900SH Level and Flow Transmitters appeared first on Delta Mobrey.

]]> SPECIFICATION

Output Signal
Analog 4-20 mA, HART



Process Connection
1-in. BSP, 2″ BSP or NPT depending on model type. threaded connection options



Process Wetted Material
PVDF



Housing Material
PVDF



Operating Temperature
-20 to +80 °C



Operating Pressure
-4 to 44 psi (-0.25 to 3.0 bar)



Compatible Devices
Delta Mobrey DMCU900 Series Universal Control Unit or field communicator



Power Supply
12 to 40 Vdc

Measurement range
Measurement range up to 15m depending on model type

The post DMSP900SH Level and Flow Transmitters appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/measurement/flow/manifolds/dmsp900sh-level-and-flow-transmitters-flow-transmitters/feed/ 0 DMSP422, DMSP400 and DMSP500 – Ultrasonic Transmitters https://www.delta-mobrey.com/products/measurement/level/dmsp422-dmsp400-and-dmsp500/ https://www.delta-mobrey.com/products/measurement/level/dmsp422-dmsp400-and-dmsp500/#respond Fri, 28 Aug 2020 11:50:36 +0000 https://www.delta-mobrey.com/products/product-class/dmsp422-dmsp400-and-dmsp500/ Delta Mobrey's Ultrasonic Level Transmitters are your cost-effective solution for reliable level measurement instrumentation. The DMSP Series can be used for virtually all level measurements, and are ideal for mounting over liquid surfaces in tanks or open channel flow. Model options offer HART communication, relay outputs and hazardous area certification. All models have LCD display and push button configuration.



View our webinar featuring the DMSP.



Key Features

  • Non-contact, continuous measurement of Level, Contents or Open Channel Flow
  • Local LCD display and push button menu for parameter display, configuration and diagnostics
  • Two wire loop powered 4-20mA with HART® output
  • Integral relay output option
  • Speed of sound temperature compensation
  • Configure to ignore disturbing object false echo
  • IP67/68 construction
  • Plastic or painted aluminium enclosure

The post DMSP422, DMSP400 and DMSP500 – Ultrasonic Transmitters appeared first on Delta Mobrey.

]]> SPECIFICATION



Output Signal
Measurement output:
4-20 mA on DMSP422.
4-20 mA / HART on DMSP400 and DMSP500.
Other output: SPDT relays on DMSP400.



Process Connection
2-in. NPT or BSP threaded process connections, and DN and ANSI flanges.



Process Wetted Material
PVDF



Housing Material
Glass-filled nylon



Operating Temperature
-30 to 90 °C



Operating Pressure
-4 to 44 psi (-0.25 to 3.0 bar).



Compatible Devices
Delta Mobrey’s DMCU900 Series Universal Control Unit.



Display/Interface
Standard integral push-buttons with LCD.



Cable Glands
Ingress protection is IP 66/67

Power Supply
12 to 30 Vdc

The post DMSP422, DMSP400 and DMSP500 – Ultrasonic Transmitters appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/measurement/level/dmsp422-dmsp400-and-dmsp500/feed/ 0 D72 Smart HART Temperature Transmitter – D-Series https://www.delta-mobrey.com/products/series/d-series/d72-smart-temperature-transmitter/ https://www.delta-mobrey.com/products/series/d-series/d72-smart-temperature-transmitter/#respond Thu, 11 Jun 2020 10:17:50 +0000 https://www.delta-mobrey.com/products/product-class/d72-smart-temperature-transmitter/ The model D72 Smart Temperature Transmitter, part of our D-Series,  is suitable for measuring temperatures between -200°C and 1820°C, and comes with custom probe lengths and various thermowell options, making it suitable for a number of industries where extremes of temperature may occur.  These industries can be the more traditional ones, ie Oil & Gas, Petrochemicals.

Key Benefits

  •  ATEX - Intrinsically Safe
  •  4-20mA output signal.
  •  Fully HART ® compatible.
  •  Galvanic insulation (In, Out)
  •  Programmable sensor type
  •  Programmable measuring range
  •  Thermoresistance line compensation
  •  Compensation of thermocouple cold junction
  •  Autodiagnostic system
  •  Linearisation of output signal on 20 point curve for specific application is available
  •  Write protection option through DKAP-03 communicator, ‘D-Soft’ program or software using library EDDL

The post D72 Smart HART Temperature Transmitter – D-Series appeared first on Delta Mobrey.

]]>

The D72 Temperature Transmitters are capable of converting resistance of temperature or voltage of thermocouple sensor to standard current signal 4-20mA. The transmitter has two separate channels enabling measurement of temperature difference, average, average with redundancy, and max. or min. temperature.



Transmitter has compensation of ambient temperature influences and compensation of thermocouple cold junction using internal/external (Pt100) sensor or constant temperature. Most of parameters such as: sensor type, measuring range, current alarm signal when electric circuit is broken, output characteristic correction, user characteristic (60 points) are programmed using PC with Hart/USB/Bluetooth converter and Delta Mobrey’s D-Soft configuration software or DKAP-03 communicator. On request Delta Mobrey can set temperature transmitter parameters such as measuring range, type of sensor.



D72 transmitters are designed for field use with standard aluminum or stainless steel case. They can be used with temperature sensors mounted directly on transmitter’s casing or with sensors remotely connected with cable.



D-Soft features include:



  • Identification of individual transmitter
  • Configuration of output parameters
  • Readings of currently measures values
  • Enforcement of output current with a given value
  • Transmitter calibration
  • Zeroing

The post D72 Smart HART Temperature Transmitter – D-Series appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/series/d-series/d72-smart-temperature-transmitter/feed/ 0 MLT100 SMART HART Displacer Level Transmitter https://www.delta-mobrey.com/products/approvals/atex-ex-d/mlt100-displacer-level-transmitter-2/ https://www.delta-mobrey.com/products/approvals/atex-ex-d/mlt100-displacer-level-transmitter-2/#respond Thu, 05 Mar 2020 08:43:36 +0000 https://www.delta-mobrey.com/products/measurement/level/mlt100-displacer-level-transmitter-2/ The Delta Mobrey MLT100 Level Transmitter is one of the most advanced displacer based devices on the market, coupling the time proven buoyancy principle with sophisticated electronics in an instrument of high reliability and stability.

Special care has been taken in design to ensure a small mounting envelope is maintained, resulting in reduced weight and associated savings in mounting.

Available Worldwide excluding Europe.



The post MLT100 SMART HART Displacer Level Transmitter appeared first on Delta Mobrey.

]]> SPECIFICATION



Housing Material

Cast Iron, white epoxy painted or 316 stainless steel.



Power Supply

12 to 40 Vdc loop-powered



Operating Pressure

Up to 2900 psi (200 bar)



Operating Temperature

Up to 530 °C (277 °C) condensing, 608 °F (320 °C) non-condensing



Certifications/Approvals

ATEX EExd or EExia certification for use in hazardous area applications.





The post MLT100 SMART HART Displacer Level Transmitter appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/approvals/atex-ex-d/mlt100-displacer-level-transmitter-2/feed/ 0 Analogue Submersible Level Transmitters – 9700 Series https://www.delta-mobrey.com/products/measurement/level/mobrey-9710-9720-9780-and-9790-submersible-hydrostatic-level-transmitters/ https://www.delta-mobrey.com/products/measurement/level/mobrey-9710-9720-9780-and-9790-submersible-hydrostatic-level-transmitters/#respond Tue, 26 Mar 2019 14:04:12 +0000 https://www.delta-controls.com/products/product-class/mobrey-9710-9720-9780-and-9790-submersible-hydrostatic-level-transmitters/ The Delta Mobrey 9700 Series range of tank mounted transmitters provide you with precise and reliable level measurement solutions when in-tank foaming, vapor layers, and temperature gradients prevent use of other instrumentation. These transmitters are designed to perform in the extreme conditions of industrial applications. Available in submersible and externally mounted (floodable) versions, each transmitter gives you high performance and good long term stability, and is virtually maintenance free.

Key Features

  • Factory sealed and tested for submersed duty
  • 4–20 mA output signal proportional to level
  • Flush mounted ceramic sensor
  • Good long term stability
  • Ideal for industrial or marine applications
  • Wide range of mounting options
  • Low cost installation
  • Readouts for control room or plant mounting

The post Analogue Submersible Level Transmitters – 9700 Series appeared first on Delta Mobrey.

]]> SPECIFICATION



Housing Material
Ceramic sensor with 316 stainless steel or aluminium bronze housing.
Polyurethane or Fluorinated Ethylyene Polypropylene (FEP) cabling.
Mobrey 9780 only:
316 stainless steel pole supplied with 316 stainless steel housing option.
Copper nickel pole supplied aluminium bronze housing option.



Cable Glands
Glanding system supplied with required length of vented cable.



Power Supply
10 to 30 Vdc





The post Analogue Submersible Level Transmitters – 9700 Series appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/measurement/level/mobrey-9710-9720-9780-and-9790-submersible-hydrostatic-level-transmitters/feed/ 0 Analogue Level Probes – DSGE Series https://www.delta-mobrey.com/products/series/d-series/dsge-25-16-hydrostatic-level-probes/ https://www.delta-mobrey.com/products/series/d-series/dsge-25-16-hydrostatic-level-probes/#respond Fri, 07 Sep 2018 10:39:57 +0000 https://www.delta-controls.com/products/product-class/dpce-28-pressure-transmitter-copy/ The DSGE-25/16 Hydrostatic Level Probes are designed to measure liquid levels in tanks, deep wells or narrow piezometers. The probe measures liquid levels, based on a simple relationship between the height of the liquid column and the resulting hydrostatic pressure. The pressure measurement is carried out on the level of the separating diaphragm of the immersed probe and is related to atmospheric pressure through a capillary in the cable.

When lowered to the reference level, the probe may either hang freely on the cable or lie on the bottom of the tank. The cable with the capillary can be extended using a standard signal cable. For the cable connection a special DSG cable hanger is recommended.

Key Features

  • 4–20 mA output signal proportional to level
  • Flush mounted ceramic sensor
  • Good long term stability
  • Ideal for industrial or marine applications
  • Wide range of mounting options
  • Low cost installation
  • Readouts for control room or plant mounting

The post Analogue Level Probes – DSGE Series appeared first on Delta Mobrey.

]]>
The DSGE level probes offers a robust and reliable solution for level measurement based on the simple relationship between the height of the liquid column and the resulting hydrostatic pressure. With standard sizes of Ø25 or  Ø16.3 body diameter and various type of cable material available in any length desired, make the DSGE series of instruments suitable for the widest range of application.

The post Analogue Level Probes – DSGE Series appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/series/d-series/dsge-25-16-hydrostatic-level-probes/feed/ 0 D22 Pressure Transmitter https://www.delta-mobrey.com/products/series/d-series/d22-pressure-transmitter/ https://www.delta-mobrey.com/products/series/d-series/d22-pressure-transmitter/#respond Mon, 19 Mar 2018 09:17:19 +0000 https://www.delta-controls.com/products/product-class/dpce-28-pressure-transmitter-copy/ The D22 Pressure Transmitters are an economic solution for the measurement of pressure, underpressure, and absolute pressure of gases, vapours and liquids. Available in a wide range of blind and compact construction for a wide range of industrial applications.  The active sensing element is a piezoresistive silicon sensor separated from the medium by a diaphragm and by a specifically selected type of manometric liquid.

This series is suitable for use in corrosive atmospheres and is also resistant to chemical attack. The model D22 Pressure Transmitter is suitable for measuring pressures from 0 to 25 mbar up to 0 to 1000bar with maximum overpressure up to 1200bar.

The post D22 Pressure Transmitter appeared first on Delta Mobrey.

]]>

The D22 Pressure Transmitters is a low cost solution for the measurement of pressure, underpressure, and absolute pressure of gases, vapours and liquids. Available in a wide range of blind and compact construction for a wide range of industrial application.  The active sensing element is a piezoresistive silicon sensor separated from the medium by a diaphragm and by a specifically selected type of manometric liquid.



From the simple flying leads electric connection to standardized connector IP65/IP68 or even an all Stainless Steel enclosure with internal terminal board, to cover almost all the application.



Threaded with rear or flush diaphragm process connection and several type of chemical seal are available, to measure any type of process fluid and condition.

The post D22 Pressure Transmitter appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/series/d-series/d22-pressure-transmitter/feed/ 0 2HT SMART HART Pressure Transmitter https://www.delta-mobrey.com/products/series/digital-series/2ht-pressure-transmitter/ https://www.delta-mobrey.com/products/series/digital-series/2ht-pressure-transmitter/#respond Thu, 23 Mar 2017 12:25:51 +0000 http://flow20development.co.uk/delta-controls/product-class/2ht-pressure-transmitter/ Delta Mobrey's 2HT Pressure Transmitter offers customers a compact HART transmitter housed in a robust, all stainless steel enclosure.

The 2HT can be supplied with an optional D-CAL digital display that not only provides users with a visible indication of the measured pressure but that also provides users with access to over 80% of the transmitters HART commands, therefore reducing the need for costly third party communicators. For applications where the ambient temperature can vary significantly, the 2HT can be supplied with an optional high accuracy calibration enabling the accuracy to be maintained within 0.1% for ambient temperatures ranging from -30°C to +70°C.

The model 2HT pressure transmitter is suitable for measuring pressures up to 1000bar with maximum working pressures up to 1500bar and has been designed to work in harsh and heavy duty applications, such as off-shore.

The post 2HT SMART HART Pressure Transmitter appeared first on Delta Mobrey.

]]>

Delta’s model 2HT Pressure Transmitter offers customers a compact HART communicating transmitter housed in a robust, all stainless steel enclosure.

The 2HT can be supplied with an option D-CAL digital display that not only provides users with a visible indication of the measured pressure but that also provides users with access to over 80% of the transmitters HART commands, thus reducing the need for costly third party communicators.

The post 2HT SMART HART Pressure Transmitter appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/series/digital-series/2ht-pressure-transmitter/feed/ 0 387 Analogue Pressure Transmitter https://www.delta-mobrey.com/products/series/digital-series/387-pressure-transmitter-2/ https://www.delta-mobrey.com/products/series/digital-series/387-pressure-transmitter-2/#respond Thu, 19 Jan 2017 06:21:45 +0000 http://flow20development.co.uk/delta-controls/product-class/387-pressure-transmitter-2/ The Delta Mobrey 387 pressure transmitter has a compact, robust, all stainless steel construction making it particularly suited to the harsh corrosive environments of offshore applications. It also offers excellent accuracy of 0.15% of the upper range value, including combined effects of linearity, hysteresis and repeatability,

Product applications

The 387 is suitable for a wide range of applications in many industry sectors:

  • Oil & Gas
  • Chemical
  • Petrochemical
  • Water
  • Power

The post 387 Analogue Pressure Transmitter appeared first on Delta Mobrey.

]]>

The 387 Pressure Transmitter has a compact, robust, all stainless steel construction having been designed specifically for the offshore oil and gas industry.

The post 387 Analogue Pressure Transmitter appeared first on Delta Mobrey.

]]> https://www.delta-mobrey.com/products/series/digital-series/387-pressure-transmitter-2/feed/ 0
