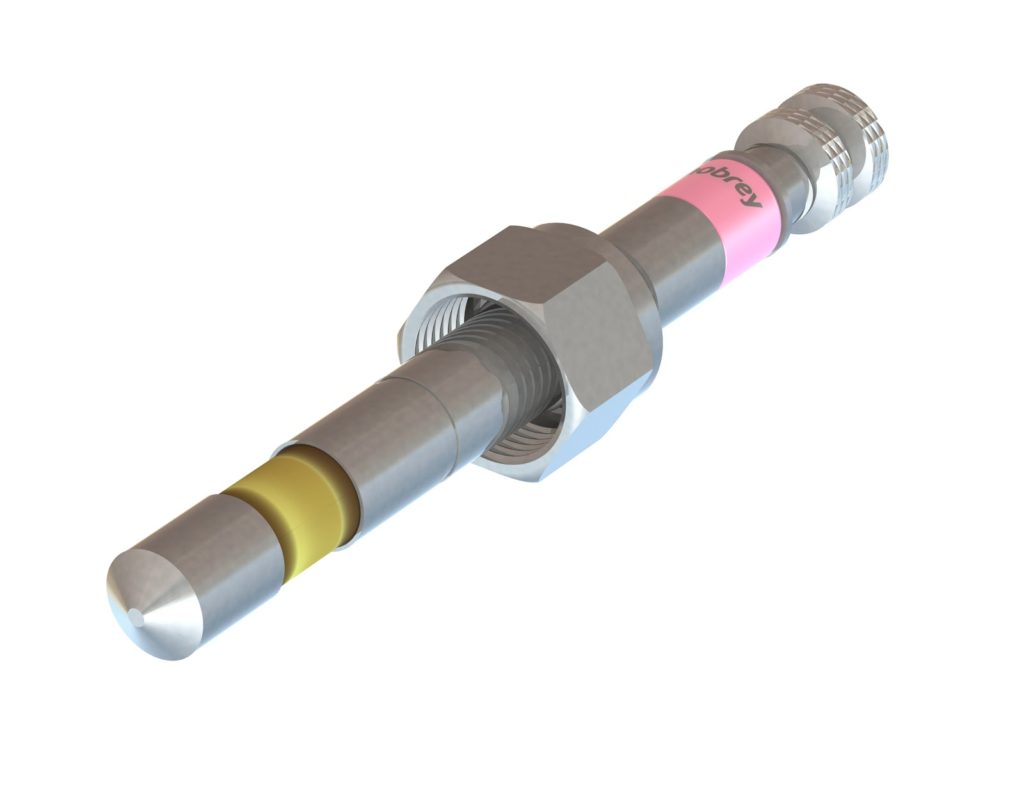

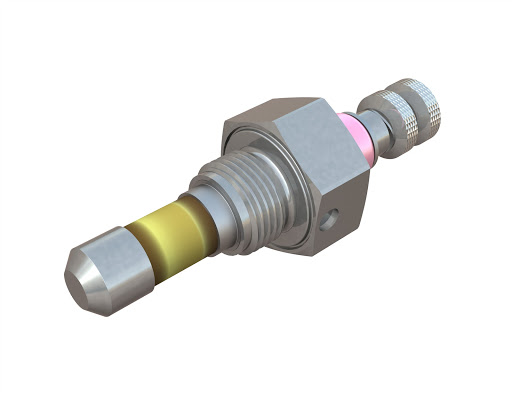

As well as being essential to the measurement of water and steam, they are also incredibly durable and reliable.

This is due to their specific design, as each electrode is handcrafted and tested to withstand both extreme pressures and temperatures. As a result they can endure harsh conditions for many years (even decades), ensuring that your plant will continue to operate safely and consistently.

The post Electrodes appeared first on Delta Mobrey.

Modulating Controller:

The Delta Mobrey Modulating Controller is a single element electro-hydraulic control with an electronic feedback, used for controlling the flow of feed water into the boiler. Designed to be used alongside the Delta Mobrey
Vertical Air Break Controls (VABC).

Sequencing blowdown valves:

The Delta Mobrey sequencing valve is designed to function as a combined water isolating valve and a sequencing blowdown valve to provide positive purging of the water connection, float chamber and steam connection of a boiler control. The operation of the valve helps to ensure the water port does not become blocked by sediment, mud or debris. It also provides a positive test of the boiler water level control, ensuring that any associated equipment, such as the feedwater pump or valve, and any alarms, cutouts or lockouts operate as expected.

Vertical Air Break Controls

The Delta Mobrey Vertical Air Break Controls (VABC) are a comprehensive range of magnetically operated water level controls for steam boilers. They are designed to meet all requirements for automatic on/off control of boiler feed pump, burner cut out, high and/or low level alarm or any combination of these. Models available with Industrial (NEMA4) or Marine Heads. TÜV approved models are available in chambers and for direct mounting. The Delta Mobrey VABC is a gland-less construction. A primary permanent magnet is attached to the float rod and slides vertically inside a non-magnetic stainless steel centre tube. Movements of the float are transmitted to a secondary magnet in each switch unit.

The post Boiler Water Level Controls appeared first on Delta Mobrey.

The Delta Mobrey MSM400 system continuously measures the suspended solids within sludges or slurries.  Many years of practical experience have shown that measurement of ultrasonic attenuation in a slurry is directly proportional to the percentage of suspended solids. The MSM400 system uses this principle to give a digital display and continuous output of the suspended solids measurement.

Commonly used in waste water treatment, industrial and mining plants and suitable for a wide range of fluids such as effluent, limestone slurry and China clay.  Applications include sludge blanket measurement and detection, and slurry density control. The MSM400 controller is used with ultrasonic gap sensors available for either tank or pipe installation with a range of gap sizes to suit the application.

The post Suspended Solids Monitoring – MSM400 appeared first on Delta Mobrey.

The post MCU200 Suspended Solids Detection Switch appeared first on Delta Mobrey.

The Hydratect 2462 control unit provides signal processing for two electrodes. Each channel monitors the status of its associated electrode. Four conductors are used between the control unit and each electrode so it can differentiate between steam, water, short-circuit, and open-circuit. A green LED indicates water, a red LED indicates steam and an amber LED indicates a fault condition. Each channel has a status relay to indicate water or steam, and a fault relay that will de-energise on a fault condition. The two channels are completely independent having separate power supplies, signal processing, and fault detection. The relay outputs can be externally wired for a 'one out of two' or 'two out of two' tripping scheme.

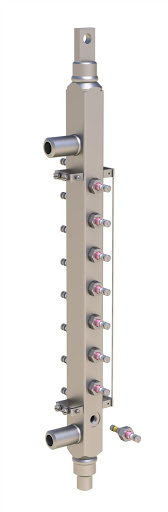

A Hydratect 2462 system consists of electrodes fitted into inserts and welded into the pipe work. Alternatively, manifolds can be supplied to technical drawings with inserts already in place. Electrodes are protected by covers. A military specification high-temperature cable connects each electrode to the Hydratect control unit.

A typical application to ensure TWIP (Turbine Water Induction Protection) is condensate level detection in drain pots (condensate pots).

Hydratect can be used to give compliance with ASME TDP-1, Prevention of Water Damage to Steam Turbines Used for Electric Power Generation: Fossil-Fuelled Plants.

The post Hydratect 2462 System appeared first on Delta Mobrey.

Assessed by an external body and found to be SIL 2 capable, according to the requirements of IEC 61508. It is recognised by boiler inspectors and plant insurers, the ASME approved design ensures Hydrastep can be used as a Remote Level Indicator in compliance with ASME Boiler Code PG60.1.1. It is also approved by Factory Mutual for boiler level control and recommended within the UK’s Combustion Engineering Association’s water tube boiler guide BG11. All of this expertise is backed up by over 6000 installations of Hydrastep around the globe.

Key Features
• For use with 8 to 32 electrode inputs
• SIL 2 capable for use in a Safety Instrumented Function
• High clarity local and remote displays
• 32 segment green/red display of the water/steam interface level
• 4–20 mA output proportional to water/steam interface level
• Relay output option for high or low level alarms or trips
• Dual redundancy option for ultimate reliability
• Detect and indicate any fault conditions
• Contamination indication for preventative maintenance
• For use up to 560°C (1040 °F) and 300 Bar (4350 PSI)
• PED compliant as Safety Accessory
